CLI and Execution Modes

Command Surface

ClearEx installs the clearex command.

Current primary arguments are:

  • --flatfield

  • --deconvolution

  • --particle-detection

  • --usegment3d

  • --channel-indices

  • --input-resolution-level

  • --shear-transform

  • --registration

  • --fusion

  • --display-pyramid

  • --visualization

  • --render-movie

  • --compile-movie

  • --volume-export

  • --mip-export

  • --file

  • --migrate-store

  • --migrate-output

  • --migrate-overwrite

  • --dask / --no-dask

  • --chunks

  • --stage-axis-map

  • --gui / --no-gui

  • --headless

Execution Modes

The entrypoint is GUI-first by default:

  • clearex attempts GUI launch.

  • --headless forces non-interactive mode.

  • --no-gui disables GUI launch attempts.

  • GUI launch failures (missing display/runtime issues) fall back to headless mode with warnings.

GUI Setup Flow

The first GUI window is an experiment-list driven setup flow:

  • Load Experiment adds one Navigate experiment.yml/experiment.yaml.

  • Create Experiment List can either: - recursively scan a folder for Navigate experiment descriptors, or - reload a saved ClearEx list file (.clearex-experiment-list.json).

  • Drag and drop accepts individual experiment descriptors, folders to scan, and saved list files.

  • Selecting an entry in the list automatically loads the metadata panel.

  • Double-clicking a list item reloads that experiment’s metadata explicitly.

  • The current ordered list can be saved back to a reusable .clearex-experiment-list.json file.

  • Spatial Calibration edits store-level world z/y/x placement mapping for the currently selected experiment without rewriting image data.

  • Spatial-calibration drafts are tracked per experiment while setup is open.

  • Existing canonical stores prefill the spatial-calibration control when metadata is already present.

  • Pressing Next batch-prepares canonical data_store.ome.zarr stores for every listed experiment that is missing a complete store, persists the resolved spatial calibration to every reused or newly prepared store, then opens analysis selection for the currently selected experiment.

  • Rebuild Canonical Store forces the listed stores to be rebuilt as canonical OME-Zarr outputs with the current chunk and pyramid settings.

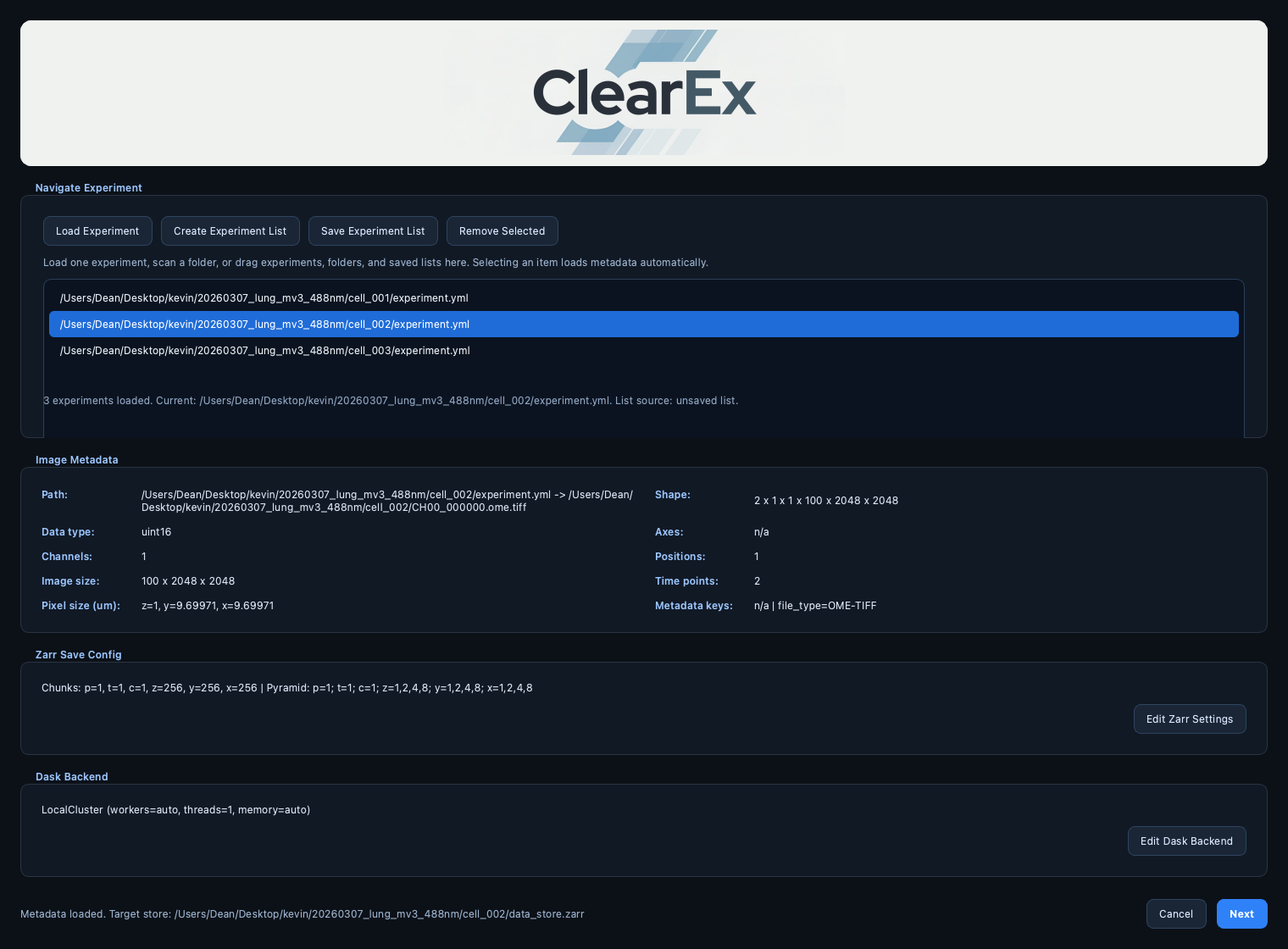

ClearEx setup dialog showing the themed experiment list pane and metadata panel

Setup dialog with the experiment list pane, automatic metadata loading, and themed list-management controls.

Workflow Selection

Each analysis flag is independent. You can run a single operation or multiple operations in one run.

In the GUI analysis window:

  • Analysis Scope lets you choose which loaded experiment.yml is the active analysis target.

  • Enabling the batch checkbox runs the same selected operation set across all experiments from the setup list instead of only the selected one.

  • Per-dataset analysis widget state is restored automatically when available: saved GUI state is preferred, and Restore Latest Run Parameters falls back to the latest completed provenance-backed run for the active store.

Examples

# GUI-first default
clearex

# Headless chained run
clearex --headless \
  --file /path/to/experiment.yml \
  --flatfield --deconvolution --particle-detection

# Headless visualization against an existing canonical OME-Zarr store
clearex --headless \
  --file /path/to/data_store.ome.zarr \
  --visualization

# Headless movie workflow against an existing canonical OME-Zarr store
clearex --headless \
  --file /path/to/data_store.ome.zarr \
  --render-movie

clearex --headless \
  --file /path/to/data_store.ome.zarr \
  --compile-movie

# Headless Navigate run with explicit stage-to-world placement mapping
clearex --headless \
  --file /path/to/experiment.yml \
  --visualization \
  --stage-axis-map z=+x,y=none,x=+y

# Headless volume export against an existing canonical OME-Zarr store
clearex --headless \
  --file /path/to/data_store.ome.zarr \
  --volume-export

# Migrate one legacy ClearEx store
clearex --migrate-store /path/to/legacy_store.zarr

Spatial Calibration

Spatial calibration is a store-level mapping from world z/y/x placement axes to Navigate multiposition stage coordinates.

  • Canonical text form is z=...,y=...,x=....

  • Allowed bindings are +x, -x, +y, -y, +z, -z, +f, -f, and none.

  • Default identity mapping is z=+z,y=+y,x=+x.

  • none disables translation on that world axis.

  • THETA remains interpreted as rotation of the z/y plane about world x.

GUI and headless flows share the same normalized parser and storage policy:

  • GUI setup writes the resolved mappings to the listed experiment stores on Next.

  • --stage-axis-map writes an explicit override to Navigate-materialized stores and existing canonical OME-Zarr stores before analysis starts.

  • If no explicit override is supplied, existing store calibration is preserved.

  • The mapping changes placement metadata only; image payloads remain unchanged.

Interchangeable Routine Composition

In orchestration, routines are composed from normalized analysis_parameters rather than hard-coded fixed order:

  • execution_order decides sequence among selected routines.

  • input_source decides which logical upstream component each routine reads.

  • force_rerun can override provenance-based skip behavior.

This allows operators to rerun one stage, swap stage order, or run partial chains without changing the code path in main.py.

registration and fusion are intentionally split so operators can run transform estimation and final stitched rendering in separate executions with different backend sizing or worker-memory limits. registration always persists affine transform/layout metadata; when the experimental deformable follow-up is enabled it also persists a coarse displacement lattice that fusion consumes automatically. Older affine-only registration results remain valid fusion inputs.

Input Source Resolution

Runtime source aliases currently include:

  • data -> clearex/runtime_cache/source/data

  • flatfield -> clearex/runtime_cache/results/flatfield/latest/data

  • deconvolution -> clearex/runtime_cache/results/deconvolution/latest/data

  • shear_transform -> clearex/runtime_cache/results/shear_transform/latest/data

  • fusion -> clearex/runtime_cache/results/fusion/latest/data

  • usegment3d -> clearex/runtime_cache/results/usegment3d/latest/data

  • registration -> clearex/results/registration/latest (metadata-only; consumed by fusion; may include optional deformable lattice metadata)

  • visualization -> clearex/results/visualization/latest (metadata-only; consumed by render_movie)

  • render_movie -> clearex/results/render_movie/latest (metadata-only; consumed by compile_movie)

  • compile_movie -> clearex/results/compile_movie/latest (metadata-only; terminal export metadata)

Public OME image collections at the root and under results/<analysis>/latest exist for interoperability and visualization. Analysis kernels should not write into those public arrays directly.

Volume Export

volume_export is a visualization-family export workflow for one selected image-producing source component.

  • input_source resolves the upstream image-producing component to export. It accepts the usual runtime aliases such as data, flatfield, deconvolution, shear_transform, fusion, and explicit internal component paths.

  • force_rerun bypasses provenance-based reuse and rewrites the latest export payload even when matching latest metadata already exists.

  • export_scope=current_selection exports one explicit (t, p, c) volume.

  • export_scope=all_indices exports every available (t, p, c) volume.

  • t_index, p_index, and c_index select the exported volume when export_scope=current_selection. They are ignored for export_scope=all_indices.

  • resolution_level can reuse discovered source-adjacent pyramid levels or generate missing deeper levels during export.

  • export_format=ome-zarr publishes results/volume_export/latest from the runtime cache.

  • export_format=ome-tiff writes in-store artifacts under <analysis_store>/clearex/results/volume_export/latest/files.

  • tiff_file_layout=single_file writes one current-selection ZYX OME-TIFF or one all-position BigTIFF with one TCZYX series per position.

  • tiff_file_layout=per_volume_files writes one ZYX OME-TIFF per exported (t, p, c) volume.

  • memory_overhead_factor is preserved in the normalized workflow payload as a scheduler hint, even though the current export implementation does not use it directly.

  • chunk_basis, detect_2d_per_slice, use_map_overlap, and overlap_zyx are normalized compatibility fields inherited from other volume analyses and are pinned to 3D/no-overlap behavior for volume_export.

When a requested source component does not exist, runtime raises an input dependency error instead of silently falling back.

The CLI currently exposes --volume-export as the operation flag. Detailed parameter editing is currently done through the GUI or a programmatic WorkflowConfig.analysis_parameters["volume_export"] payload. The full parameter-by-parameter reference lives in Analysis Workflow: Volume Export.

Progress and Run Lifecycle

Execution progresses through these coarse stages:

  1. Resolve workflow and inputs.

  2. Materialize canonical OME-Zarr store when needed.

  3. Execute selected analyses in resolved order.

  4. Publish latest outputs and append provenance run record.

GUI execution uses explicit progress callbacks and per-run logging in the resolved workflow log directory. File-backed runs also write a sibling *.events.jsonl structured audit log containing chronological workflow, input, analysis-step, progress, skip, failure, cancellation, and provenance events. Credential-like metadata keys are redacted before writing. When a run persists provenance in a canonical store, the final JSONL log is copied to clearex/provenance/event_logs/<run_id>.jsonl and the run record stores its manifest, event count, checksum, execution id, and redaction policy.

The Running Analysis dialog exposes an Open Dask Dashboard button. GUI dashboard launch behavior is:

  • ClearEx opens a localhost-only tokenized relay rather than the raw scheduler dashboard URL directly.

  • The relay is available only while a ClearEx-managed Dask client for the active analysis workload is alive.

  • The Running Analysis dialog enables its dashboard button only while the current run owns a live analysis client.

  • If ClearEx cannot reach the upstream dashboard or cannot start the relay, the GUI shows a warning and does not open the raw dashboard URL.

The Running Analysis dialog also includes a Stop Analysis button. Cancellation is cooperative: ClearEx stops at the next progress checkpoint and persists the interrupted run in provenance with status=cancelled.

Visualization Keyframe Capture

When visualization launches napari, keyframe capture is enabled by default:

  • Press K to capture a keyframe.

  • Press Shift-K to remove the most recent keyframe.

The keyframe manifest path defaults to:

  • <analysis_store>/clearex/results/visualization/latest/keyframes.json

and can be overridden with keyframe_manifest_path in visualization parameters.

Each keyframe stores enough state to recreate the current scene for movie generation, including:

  • camera values (angles, zoom, center, perspective),

  • dims state (current step, axis labels, order, and 2D/3D mode),

  • layer order and selected/active layers,

  • per-layer display configuration (visibility, LUT/colormap, rendering mode, blending, opacity, contrast, and transforms when available).

The GUI provides a popup editor (Layer/View Table...) for optional per-layer overrides with columns:

  • Layer, Visible, LUT/Colormap, Rendering, Annotation.

Movie Rendering and Compilation

ClearEx now separates movie generation into two explicit operations:

  • render_movie: reconstructs the visualization scene from the keyframe manifest and renders PNG frames for one or more selected resolution levels.

  • compile_movie: validates one rendered frame set and encodes it through ffmpeg into MP4, ProRes MOV, or both.

Runtime storage:

  • render_movie latest metadata lives under clearex/results/render_movie/latest.

  • compile_movie latest metadata lives under clearex/results/compile_movie/latest.

  • Default in-store artifacts include <analysis_store>/clearex/results/visualization/latest/keyframes.json, <analysis_store>/clearex/results/render_movie/latest/render_manifest.json, <analysis_store>/clearex/results/render_movie/latest/level_<nn>_frames/frame_000000.png, <analysis_store>/clearex/results/compile_movie/latest/*.mp4, and <analysis_store>/clearex/results/compile_movie/latest/*.mov.

  • output_directory can still redirect render_movie or compile_movie to an external export tree when desired.

Practical guidance:

  • Use coarse levels such as [1] or [2] plus moderate frame sizes for preview renders.

  • Use level 0 and the final frame size for publication renders.

  • default_transition_frames around 48 is a good default for smooth motion.

  • mp4_crf in the 16 to 24 range is a reasonable review/final quality band, with lower values trading size for quality.

  • Rebuild timing and codec settings with compile_movie first, because it is much faster than rerendering napari screenshots.

Captured napari Points and Tracks layers are serialized into the keyframe manifest and rebuilt during render_movie so common particle/track overlays can survive beyond the interactive session.

render_movie now captures from a visible napari viewer by default. This avoids the empty-frame failures seen with hidden/offscreen capture while keeping CPU/software rendering and GPU-backed rendering usable. When ClearEx is already running inside a Qt GUI, the visible movie-capture viewer is launched in a dedicated subprocess so rendering does not touch Qt or OpenGL from the GUI worker thread.

The CLI currently exposes --render-movie and --compile-movie as operation flags. Detailed movie parameter editing is currently done through the GUI or a programmatic WorkflowConfig.analysis_parameters payload.
